Widia

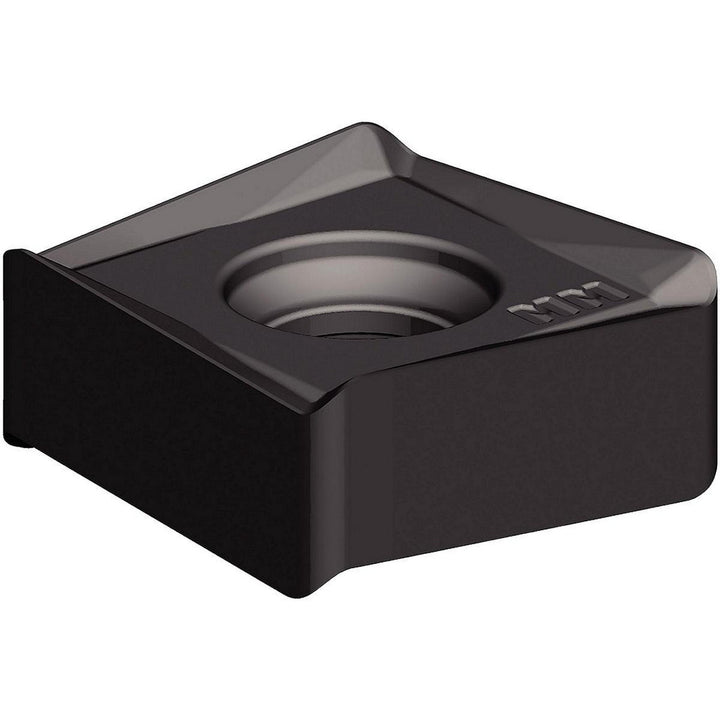

SNHX120416PNSRMM Solid Carbide Insert, Grade WP25PM, AlTiN - Widia 6712875
MFR# 6712875ISO/ANSI# SNHX120416PNSRMMCat# SNHX1204PNSRMMSeries VSM890-12
$36.20List $45.63
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeWP25PM
MaterialSolid Carbide
CoatingAlTiN
Description
The Widia 6712875 is a SNHX120416PNSRMM solid carbide indexable insert, grade WP25PM, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSNHX1204PNSRMM
Chip breakerMM
Coating finishAlTiN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityVSM890
Cutting edge styleChamfered; Honed
Hole diameter0.1870
Included angle degree90
Inscribed circle0.4724
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSNHX
Iso codeSNHX120416PNSRMM
Length0.4724
Length of cut (mm)12.0000
Length range0.4500 to 0.5000
Manufacturers catalog numberSNHX1204PNSRMM
Manufacturer gradeWP25PM
Material applicationStainless Steel; Steel; Superalloys & Titanium; Hard Material; Cast Iron
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Secondary workpiece materialCast Iron; Hard Material
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1804
Thickness range0.1750 to 0.1850
Width0.4724
