Widia

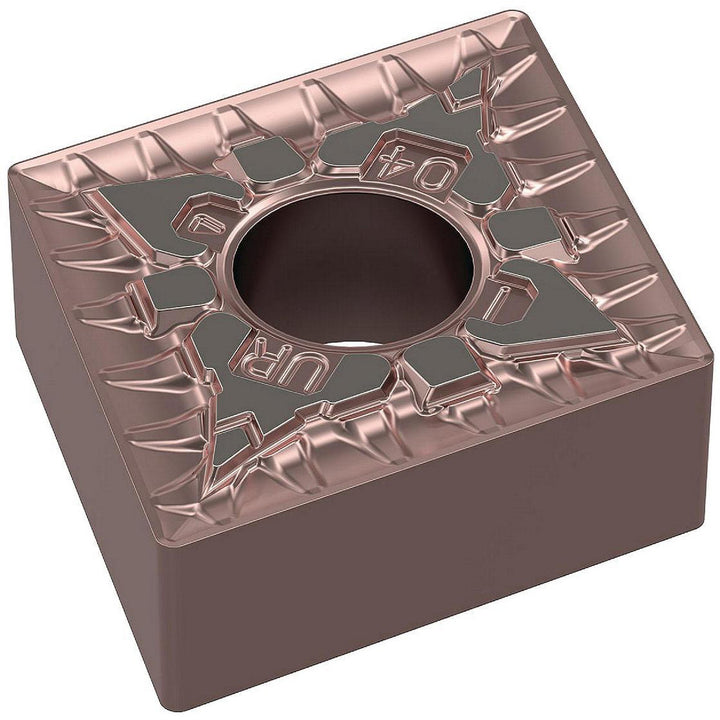

CNMG120408UR Carbide Insert, Grade WU25PT, TiAlN - Widia 6794449
MFR# 6794449ISO/ANSI# CNMG432URSeries CNMG-UR
$8.89List $11.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRhombic
GradeWU25PT
MaterialCarbide
CoatingTiAlN
Description
The Widia 6794449 is a CNMG120408UR carbide indexable insert, grade WU25PT, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerUR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberCNMG432UR
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeRhombic
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408UR
Length range0.5000 - 0.6000
Manufacturers catalog number6794449
Manufacturer gradeWU25PT
Material gradeP30
Maximum depth of cut0.2345
Multi use applicationTurning
Multi use toolNo
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle11
Relief angle0
Secondary workpiece materialCast Iron; Non-Ferrous Metal
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
