Widia

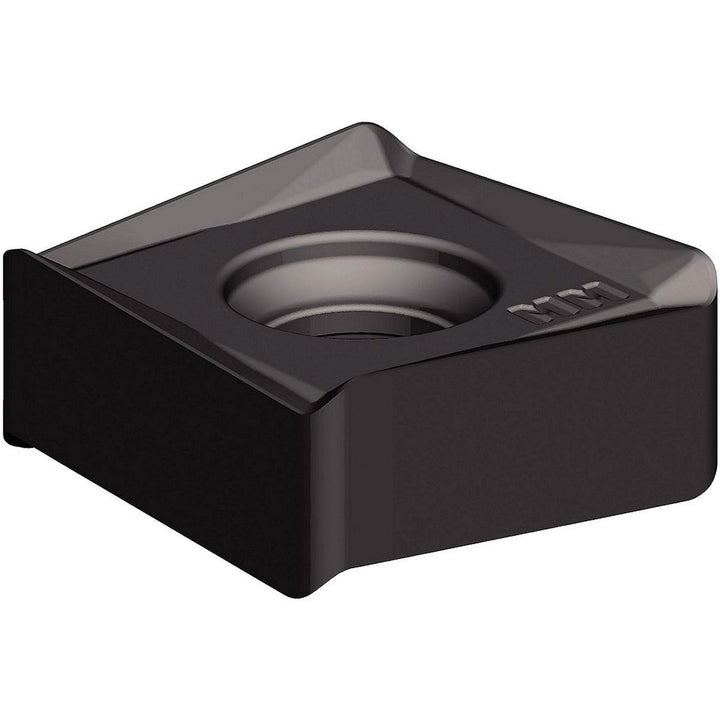

SNHX120408PNSRMM Solid Carbide Insert, Grade WP35CM, Al2O3 - Widia 6797597
MFR# 6797597ISO/ANSI# SNHX120408PNSRMMCat# SNHX1202PNSRMMSeries VSM890-12
$30.67List $39.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeWP35CM
MaterialSolid Carbide
CoatingAl2O3
Description
The Widia 6797597 is a SNHX120408PNSRMM solid carbide indexable insert, grade WP35CM, Al2O3 coated. Suited for steel, cast iron.
Specifications
Ansi codeSNHX1202PNSRMM
Chip breakerMM
Coating finishAl2O3
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityVSM890
Cutting edge styleChamfered; Honed
Hole diameter0.1870
Included angle degree90
Inscribed circle0.4724
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1202
Insert styleSNHX
Iso codeSNHX120408PNSRMM
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberSNHX1202PNSRMM
Manufacturer gradeWP35CM
Material applicationSteel; Stainless Steel; Cast Iron
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0.00
Secondary workpiece materialStainless Steel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1813
Thickness range0.1750 to 0.1850
Width0.4724
