Widia

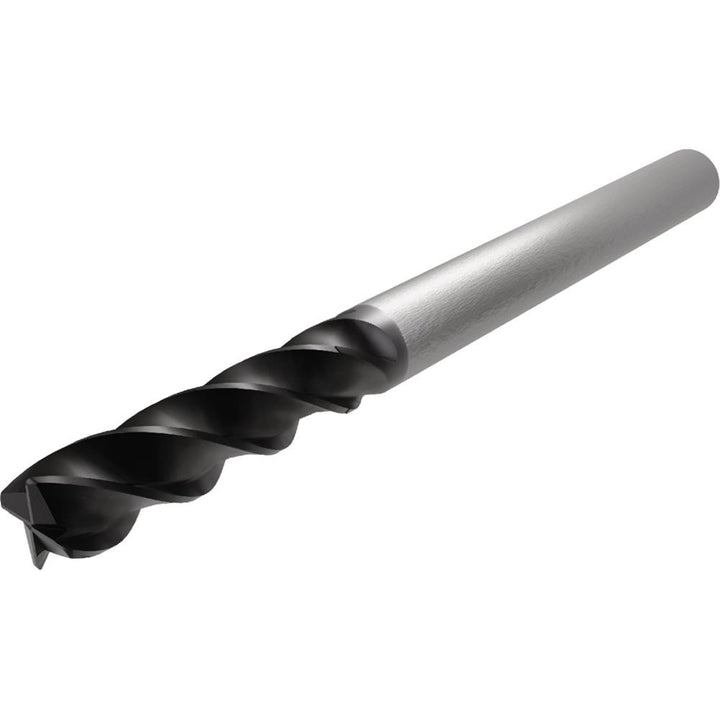

3/16" 4-Flute Solid Carbide Square End Mill, WS15PE - Widia 6827750

MFR# 6827750Series XTREME

$53.95List $69.19 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingWS15PE

Description

The Widia 6827750 is a 3/16 4-flute Solid Carbide (WS15PE) square end mill with a WS15PE finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 5/8 length of cut, 2-1/4 overall length. Series XTREME.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishWS15PE

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle37/39

Length of cut in5/8

Length typeRegular

Material gradeWS15PE

Mill diameter in3/16

Neck diameter0.1875

Neck length0.6250

Number of flutes4

Overall length in2-1/4

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Secondary workpiece materialSuper Alloys & Titanium

Shank diameter in3/16

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
