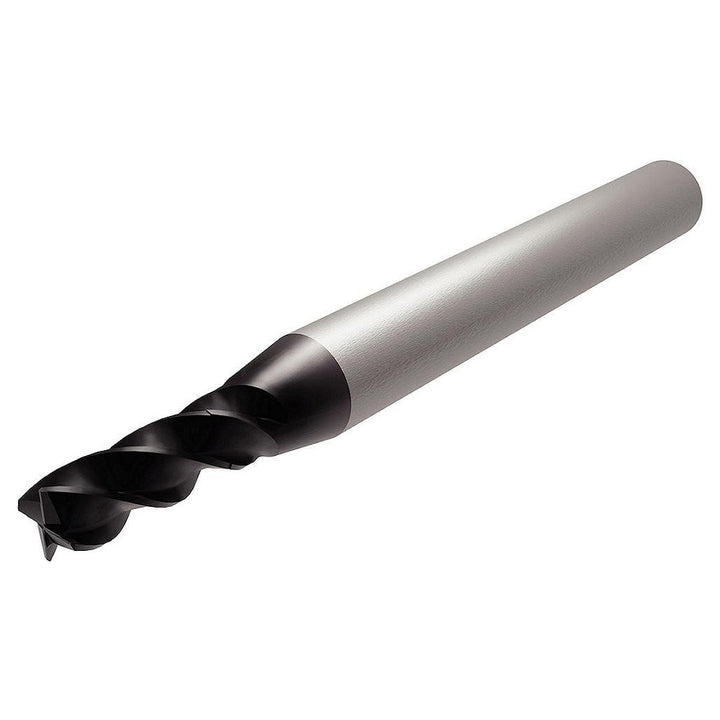

4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Widia 6830075

Widia

4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Widia 6830075

MFR# 6830075Cat# 4X0EM12005CCTSeries 4X0E

$136.23List $174.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Widia 6830075 is a 4-flute Solid Carbide (WS15PE) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. Series 4X0E.

Specifications

CentercuttingYes
Chamfer angle45
Chamfer length (mm)0.30
Chamfer width (mm)0.30
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable
Helix angle36
Helix styleVariable
Length of cut (mm)24.00
Length typeRegular
Manufacturers catalog number4X0EM12005CCT
Material gradeWS15PE
Material removal typeRoughing & Finishing
Mill diameter (mm)12.00
Number of flutes4
Overall length (mm)82.98
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length (mm)24.00
Secondary workpiece materialSuperalloys & Titanium; Hard Material
Shank diameter (mm)12.00
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
