Widia

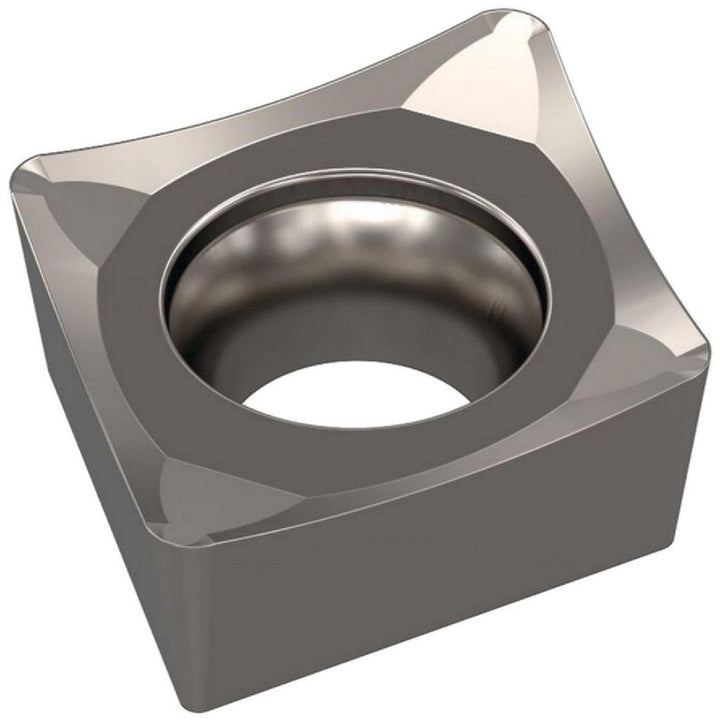

CCGT09T308AL Carbide Insert, Grade WU10HT - Widia 6846583
MFR# 6846583ISO/ANSI# CCGT3252ALSeries CCGT-AL
$22.95List $29.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRhombic
GradeWU10HT
MaterialCarbide
Description
The Widia 6846583 is a CCGT09T308AL carbide indexable insert, grade WU10HT. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80
Industry standard numberCCGT3252AL
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeRhombic
Insert size code3252
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T308AL
Length range0.3000 - 0.4000
Manufacturers catalog number6846583
Manufacturer gradeWU10HT
Material gradeN10
Maximum depth of cut0.1269
Multi use applicationTurning; Facing; Chamfering; Profiling; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
