Widia

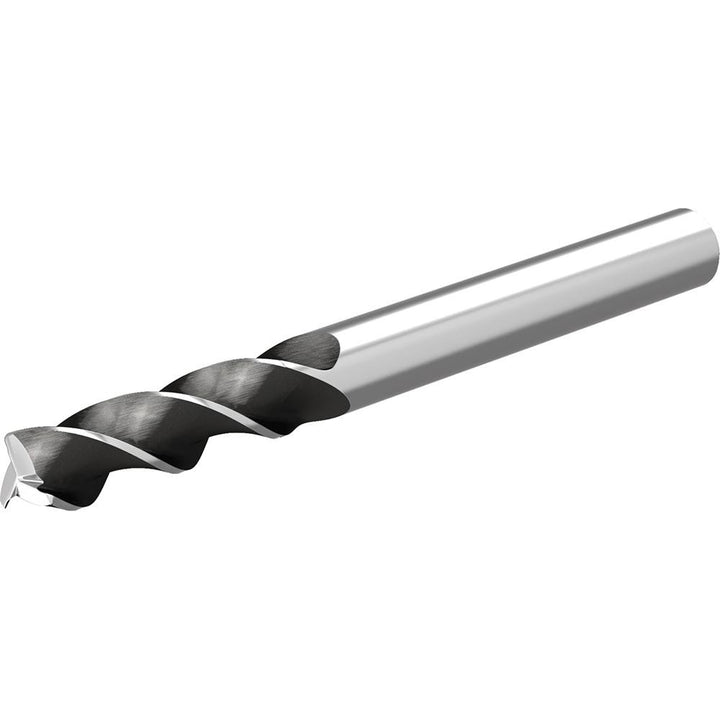

1/4" 3-Flute Solid Carbide Corner Radius End Mill - Widia 6853322

MFR# 6853322Series 3A19

$54.94List $70.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The Widia 6853322 is a 1/4 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 3A19.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleVariable

Length of cut in3/4

Length typeMedium

Material applicationNon-Ferrous Metal

Material removal typeRoughing & Finishing

Mill diameter in1/4

Neck diameter0.0000

Number of flutes3

Overall length in2-1/2

PitchNormal

Primary workpiece materialNon-Ferrous Metal

Reach length in3/4

Shank diameter in1/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
