Widia

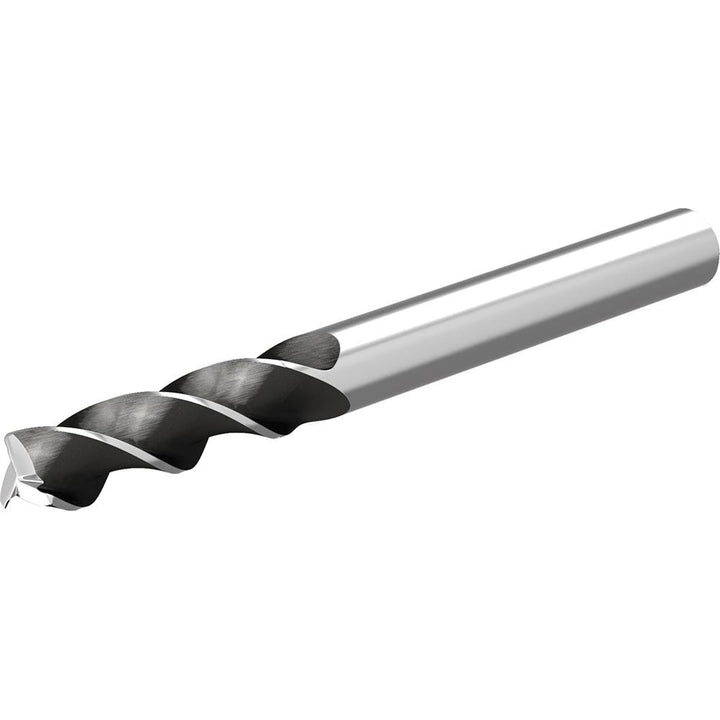

1/2" 3-Flute Solid Carbide Corner Radius End Mill - Widia 6853330

MFR# 6853330Series 3A19

$113.09List $145.04 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Widia 6853330 is a 1/2 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 2 length of cut, 4 overall length. Series 3A19.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.1200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut in2

Length typeStandard

Material applicationNon-Ferrous Metal

Material removal typeRoughing & Finishing

Mill diameter in1/2

Neck diameter0

Number of flutes3

Overall length in4

PitchNormal

Primary workpiece materialNon-Ferrous Metal

Reach length in2

Shank diameter in1/2

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
