Widia

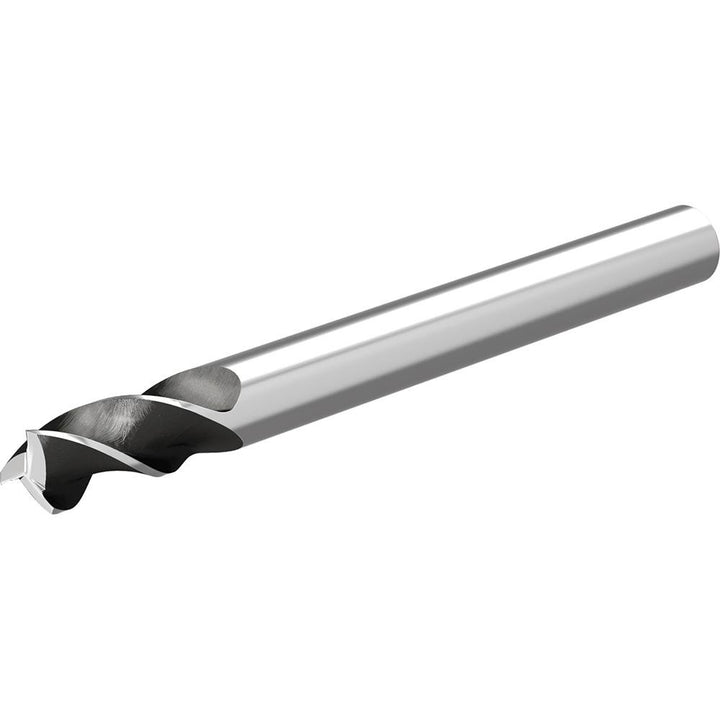

3/8" 3-Flute Solid Carbide Square End Mill - Widia 6853354

MFR# 6853354Series 3A09

$60.55List $77.65 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Widia 6853354 is a 3/8 3-flute Solid Carbide (Uncoated) square end mill. Suited for aluminum & non-ferrous. 1 length of cut, 3 overall length. Series 3A09.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle37-39

Length of cut in1

Length typeRegular

Material gradeUncoated

Mill diameter in3/8

Neck diameter0.3750

Neck length1.0000

Number of flutes3

Overall length in3

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in3/8

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
