Widia

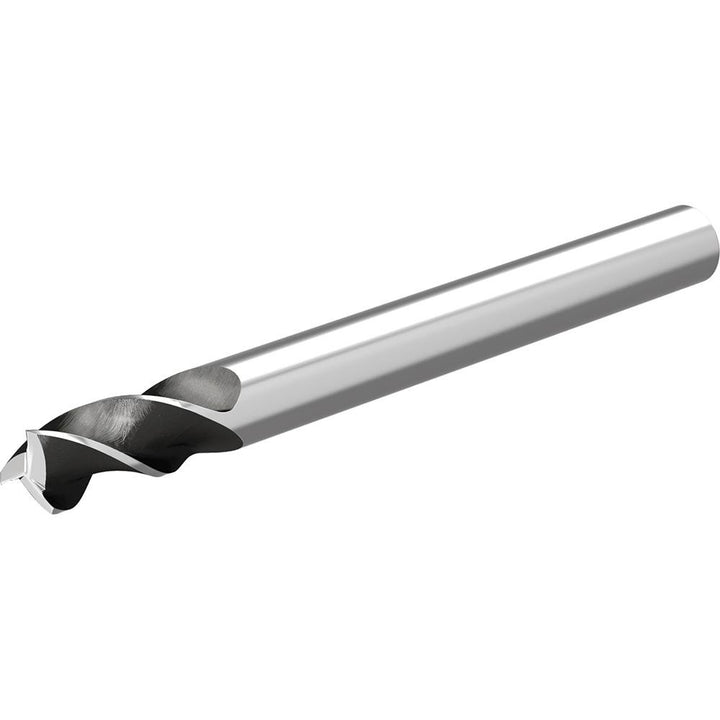

1/2" 3-Flute Solid Carbide Square End Mill - Widia 6853358
MFR# 6853358Series 3A09
$97.90List $125.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
Description
The Widia 6853358 is a 1/2 3-flute Solid Carbide (Uncoated) square end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/2 overall length. Series 3A09.
Specifications
CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle37/39
Length of cut in1-1/4
Length typeRegular
Material gradeUncoated
Mill diameter in1/2
Neck diameter0.5
Neck length1.2500
Number of flutes3
Overall length in3-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
