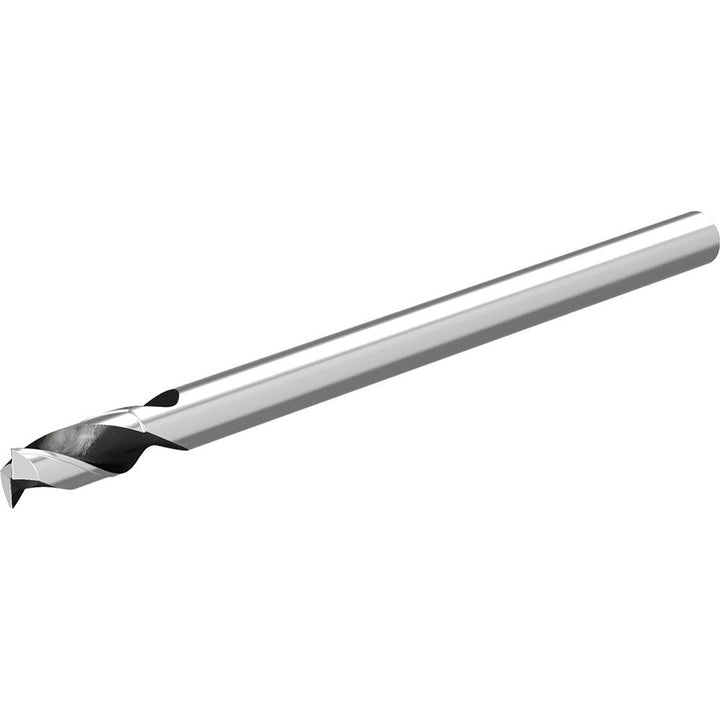

3/4" 2-Flute Solid Carbide Square End Mill - Widia 6853431

Widia

3/4" 2-Flute Solid Carbide Square End Mill - Widia 6853431

MFR# 6853431Series 2A09

$244.79List $313.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Widia 6853431 is a 3/4 2-flute Solid Carbide (Uncoated) square end mill. Suited for aluminum & non-ferrous. 1-5/8 length of cut, 4-1/4 overall length. Series 2A09.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle33
Length of cut in1-5/8
Length typeRegular
Material gradeUncoated
Mill diameter in3/4
Neck diameter0.7500
Neck length1.6250
Number of flutes2
Overall length in4-1/4
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in3/4
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
