Widia

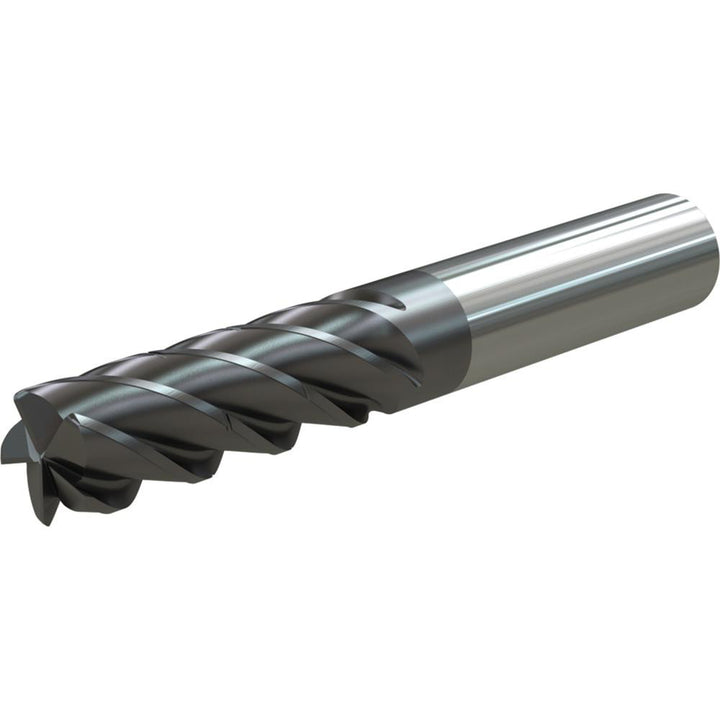

3/4" 5-Flute Solid Carbide Corner Radius End Mill, WP15PE - Widia 6853747

MFR# 6853747Series 570T

$433.84List $556.42 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingWP15PE

Description

The Widia 6853747 is a 3/4 5-flute Solid Carbide (WP15PE) corner radius end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, cast iron. 2-1/4 length of cut, 5 overall length. Series 570T.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWP15PE

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in2-1/4

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; High-Temperature Alloy

Material gradeWP15PE

Material removal typeRoughing & Finishing

Mill diameter in3/4

Neck diameter0.0000

Number of flutes5

Overall length in5

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in2-1/4

Secondary workpiece materialHigh Temperature Alloy

Shank diameter in3/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
