Widia

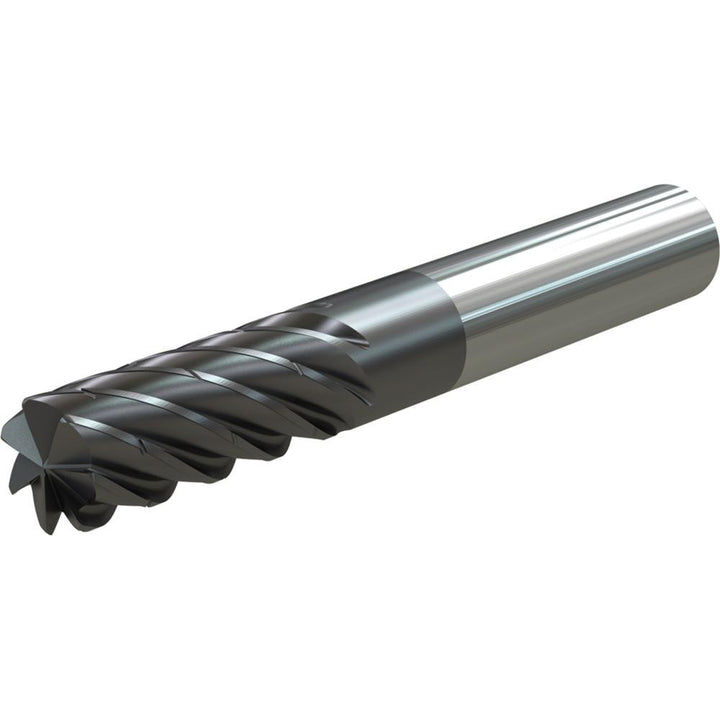

1/2" 7-Flute Solid Carbide Corner Radius End Mill, WS15PE - Widia 6853764

MFR# 6853764Series 770T

$169.82List $217.79 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes7

MaterialSolid Carbide

CoatingWS15PE

Description

The Widia 6853764 is a 1/2 7-flute Solid Carbide (WS15PE) corner radius end mill with a WS15PE finish for longer tool life. Suited for stainless steel, high temperature alloy. 1-1/4 length of cut, 3-1/2 overall length. Series 770T.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishWS15PE

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1-1/4

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; High-Temperature Alloy; Hard Material

Material gradeWS15PE

Material removal typeRoughing

Mill diameter in1/2

Neck diameter0.0000

Number of flutes7

Overall length in3-1/2

PitchClose

Primary workpiece materialStainless Steel; High Temperature Alloy

Reach length in1-1/4

Secondary workpiece materialSteel

Shank diameter in1/2

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
