Widia

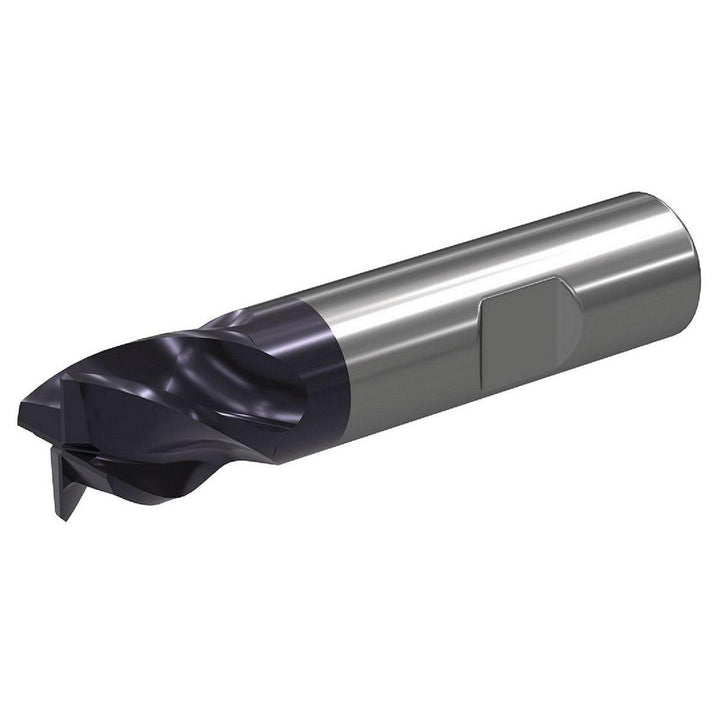

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Widia 6945721

MFR# 6945721Cat# W401E13006CTWSeries W401

$65.17List $83.58 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Widia 6945721 is a 1/2 4-flute Solid Carbide (WU20PE) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 5/8 length of cut, 2-1/2 overall length. Series W401.

Specifications

CentercuttingYes

Chamfer angle45

Chamfer length0.0200

Chamfer width0.0200

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleVariable

Length of cut in5/8

Length typeRegular

Manufacturers catalog numberW401E13006CTW

Material gradeWU20PE

Material removal typeRoughing & Finishing

Mill diameter in1/2

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in5/8

Secondary workpiece materialSuperalloys & Titanium

Shank diameter in1/2

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo
