Widia

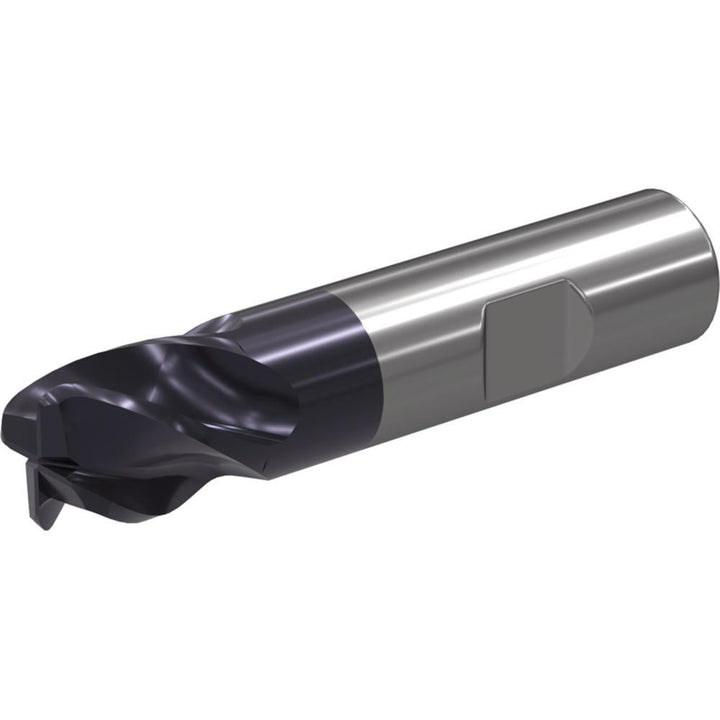

3/4" 4-Flute Solid Carbide Corner Radius End Mill, WU20PE - Widia 6945859

MFR# 6945859Series W411

$192.07List $246.33 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingWU20PE

Description

The Widia 6945859 is a 3/4 4-flute Solid Carbide (WU20PE) corner radius end mill with a WU20PE finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/2 length of cut, 4 overall length. Series W411.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWU20PE

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleVariable

Length of cut in1-1/2

Length typeLong

Material applicationSteel; Stainless Steel; Cast Iron; High-Temperature Alloy; Hard Material

Material gradeWU20PE

Material removal typeRoughing & Finishing

Mill diameter in3/4

Number of flutes4

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length1.5000

Secondary workpiece materialHigh Temperature Alloy; Hard Material

Shank diameter in3/4

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexYes
