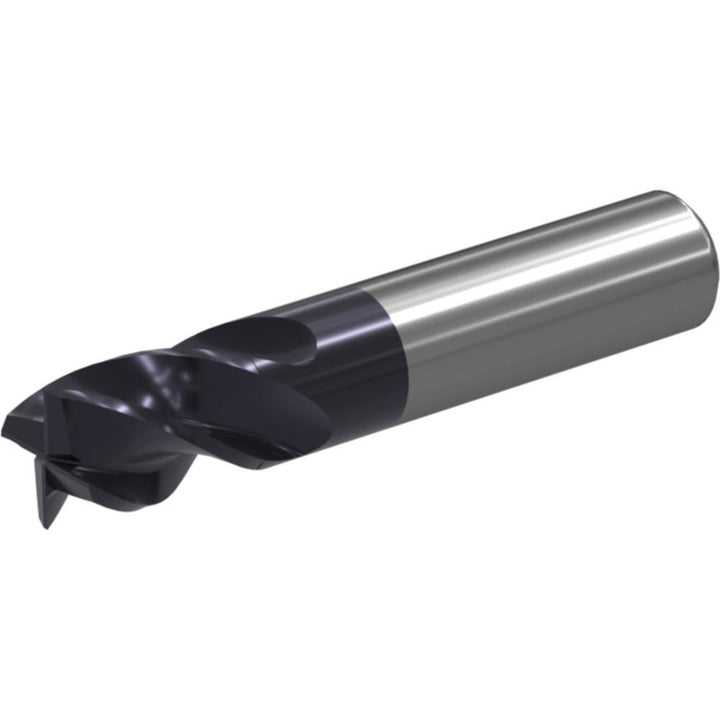

0.3750" 4-Flute Solid Carbide Roughing & Finishing End Mill, WU20PE - Widia 6945946

Widia

0.3750" 4-Flute Solid Carbide Roughing & Finishing End Mill, WU20PE - Widia 6945946

MFR# 6945946Series W421

$57.99List $74.37 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingWU20PE

Description

The Widia 6945946 is a 0.3750 4-flute Solid Carbide (WU20PE) roughing & finishing end mill with a WU20PE finish for longer tool life. 1-1/2 length of cut. Series W421.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishWU20PE
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle37/39
Length of cut in1-1/2
Length typeRegular
Material gradeWU20PE
Mill diameter0.3750
Mill diameter frac in3/8
Neck diameter in0.3750
Number of flutes4
Shank diameter in3/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
