Widia

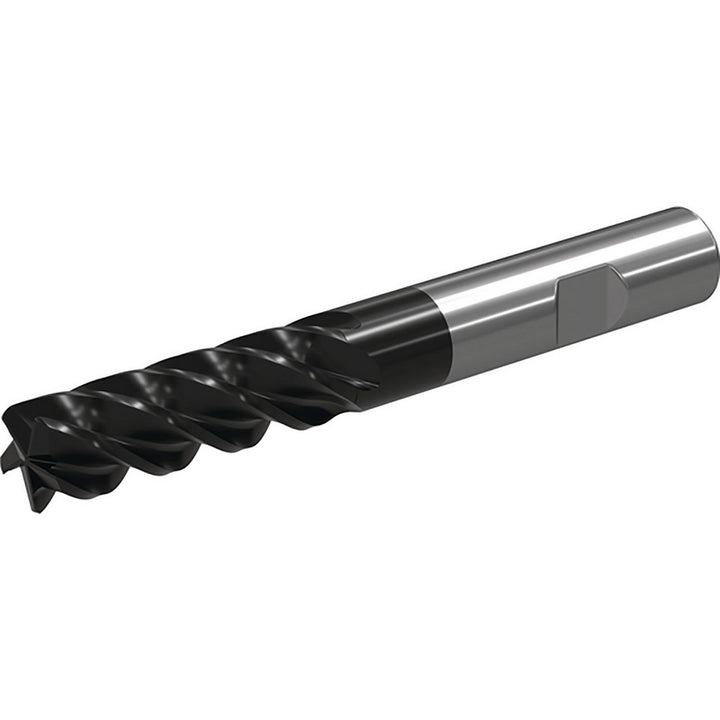

1/2" 5-Flute Solid Carbide Corner Radius End Mill, WU20PE - Widia 7008707

MFR# 7008707Cat# W511E13016RGW WU20PESeries W511

$112.47List $144.24 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes5

MaterialSolid Carbide

CoatingWU20PE

Description

The Widia 7008707 is a 1/2 5-flute Solid Carbide corner radius end mill with a WU20PE finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-5/8 length of cut, 4 overall length. Series W511.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWU20PE

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1-5/8

Length typeRegular

Manufacturers catalog numberW511E13016RGW WU20PE

Material applicationSteel; Stainless Steel; Cast Iron; High-Temperature Alloy; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in1/2

Number of flutes5

Overall length in4

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Secondary workpiece materialHigh Temperature Alloy; Hard Material

Shank diameter in1/2

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
