Yamawa

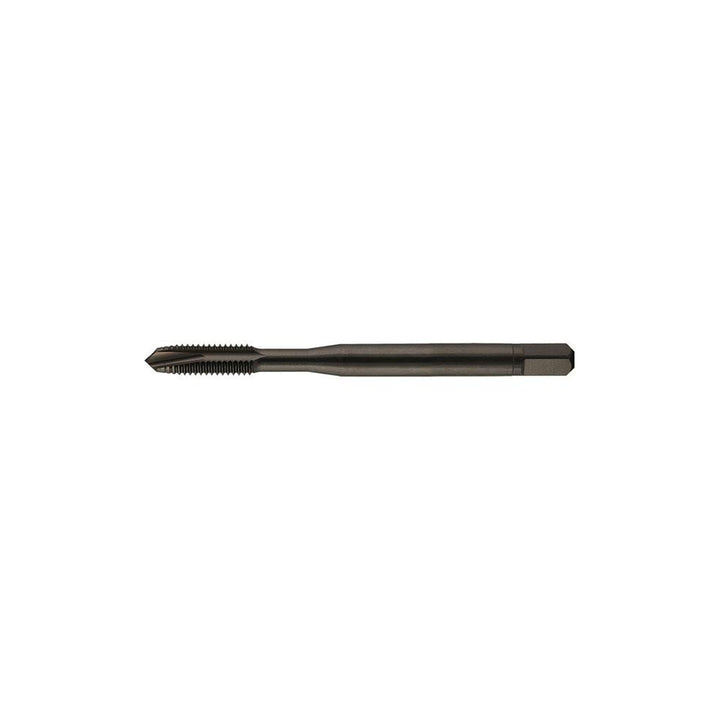

1/4-28 UNF Vanadium High-Speed Steel Tap, Oxide - Yamawa 382614
MFR# 382614Series ZELX SS
$24.69List $31.12
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingOxide
Description
The Yamawa 382614 is a 1/4-28 UNF Vanadium High-Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
Chamfer3 to 5
Class of fit2B
Coating finishOxide
Coolant throughNo
Interrupted threadNo
MaterialVanadium High-Speed Steel
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Threads per inch28
Thread directionRight Hand
Thread length0.5910
Thread limitH3
Thread pitch28.0000
Thread size in1/4-28
Thread standardUNF
