YG-1
5/32in" 4-Flute Solid Carbide Square End Mill - YG-1 07561
MFR# 07561Series E5021
$18.60List $23.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/32in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description

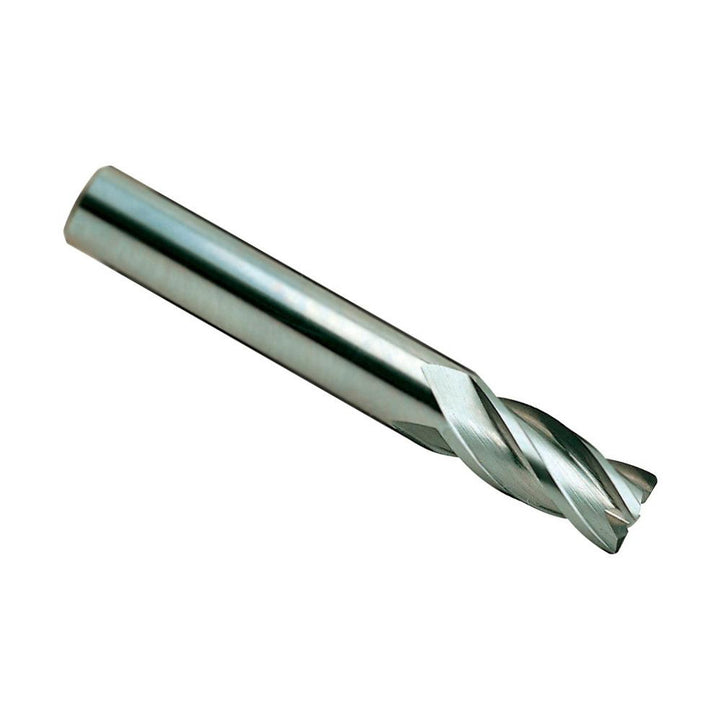

The YG-1 07561 is a 5/32in 4-flute Solid Carbide (Micrograin) square end mill. Suited for steel. 9/16in length of cut, 2in overall length. Series E5021.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16in
Length typeRegular
Material gradeMicrograin
Mill diameter in5/32in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in2in
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Hard Material
Shank diameter in3/16in
Shank diameter tolerance+0.0000 to -0.0005 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
