YG-1

3/16in" 4-Flute Solid Carbide Square End Mill - YG-1 07565

MFR# 07565Series E5021

$18.60List $23.85 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16in

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

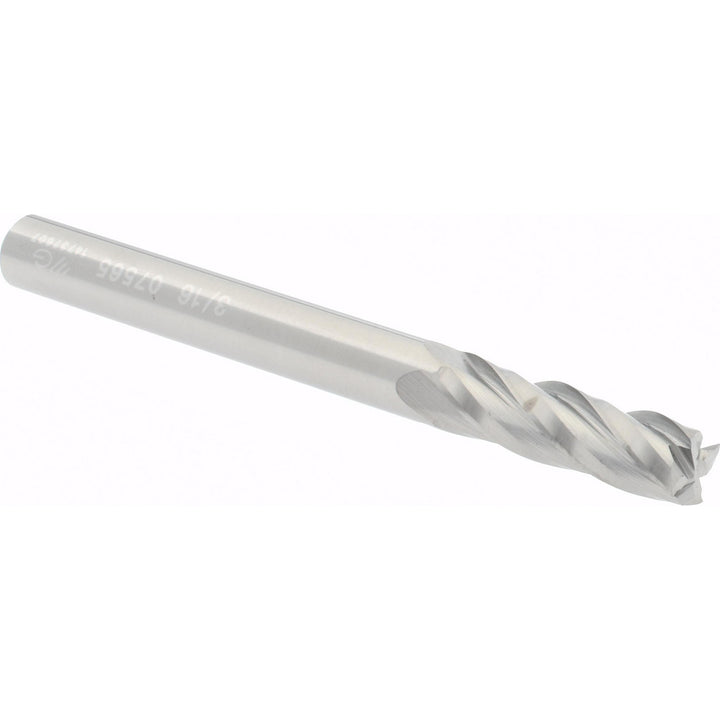

The YG-1 07565 is a 3/16in 4-flute Solid Carbide (Micrograin) square end mill. Suited for steel. 5/8in length of cut, 2in overall length. Series E5021.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in5/8in

Length of cut range0.6000 - 0.7000

Length typeRegular

Material gradeMicrograin

Mill diameter in3/16in

Mill diameter tolerance0.0000 to -0.0012 in

Number of flutes4

Overall length in2in

Primary workpiece materialSteel

Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Hard Material

Shank diameter in3/16in

Shank diameter tolerance+0.0000 to -0.0005 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
