YG-1

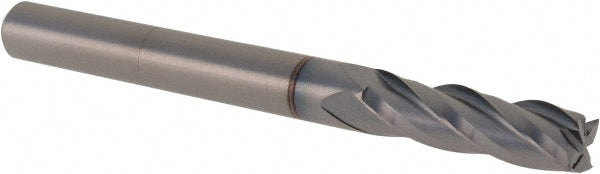

3/16in" 4-Flute Solid Carbide Square End Mill, TiCN - YG-1 07565TC

MFR# 07565TCSeries E5021

$24.77List $31.77 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16in

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The YG-1 07565TC is a 3/16in 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. Suited for steel. 5/8in length of cut, 2in overall length. Series E5021.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in5/8in

Length of cut range0.6000 - 0.7000

Length typeRegular

Material gradeMicrograin

Mill diameter in3/16in

Mill diameter tolerance0.0000 to -0.0012 in

Number of flutes4

Overall length in2in

Primary workpiece materialSteel

Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Hard Material

Shank diameter in3/16in

Shank diameter tolerance+0.0000 to -0.0005 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
