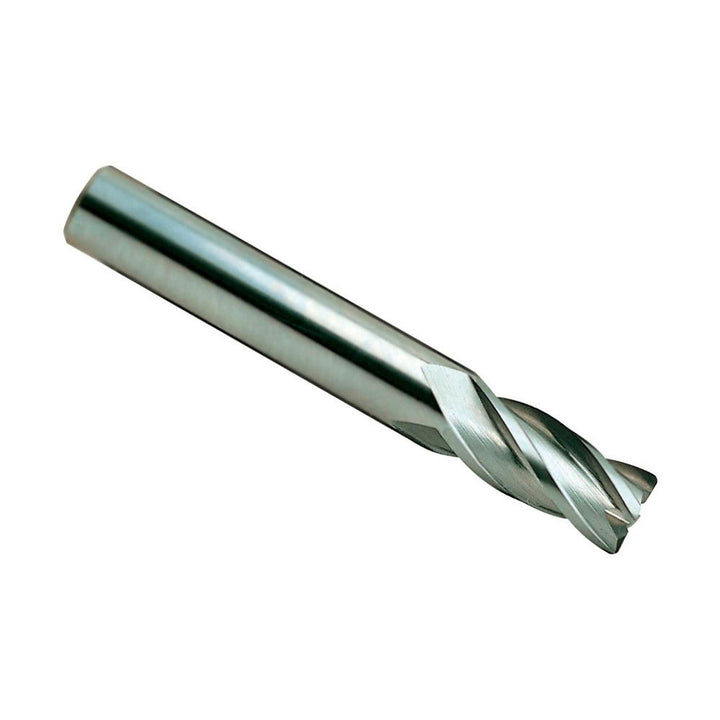

3/8in" 4-Flute Solid Carbide Square End Mill, TiCN - YG-1 07584TC

YG-1

3/8in" 4-Flute Solid Carbide Square End Mill, TiCN - YG-1 07584TC

MFR# 07584TCSeries E5021

$57.98List $74.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The YG-1 07584TC is a 3/8in 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. Suited for steel. 1in length of cut, 2-1/2in overall length. Series E5021.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1in
Length typeRegular
Material gradeMicrograin
Mill diameter in3/8in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in2-1/2in
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Hard Material
Shank diameter in3/8in
Shank diameter tolerance+0.0000 to -0.0005 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
