YG-1

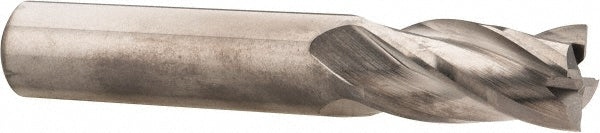

1/2" 4-Flute Solid Carbide Square End Mill - YG-1 07593

MFR# 07593Series E5021

$66.18List $84.88 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The YG-1 07593 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous. 1 length of cut, 3 overall length. Series E5021.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeRegular

Material gradeMicrograin

Mill diameter in1/2

Mill diameter tolerance0.0000 to -0.0012 in

Number of flutes4

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous

Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Hard Material

Shank diameter in1/2

Shank diameter tolerance+0.0000 - -0.0005 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
