YG-1

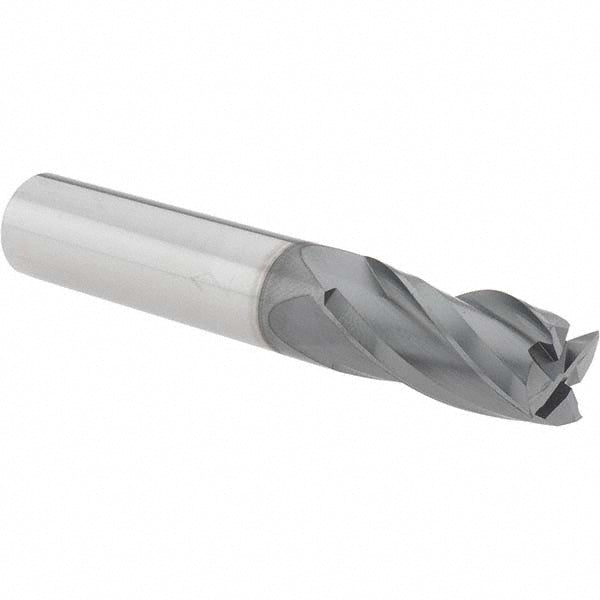

1/2in" 4-Flute Solid Carbide Square End Mill, TiAlN - YG-1 07593TF
MFR# 07593TFSeries E5021
$87.97List $112.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The YG-1 07593TF is a 1/2in 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel. 1in length of cut, 3in overall length. Series E5021.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1in
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in3in
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Hard Material
Shank diameter in1/2in
Shank diameter tolerance+0.0000 to -0.0005 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
