5/16" 4-Flute Cobalt Square End Mill - YG-1 13301

YG-1

5/16" 4-Flute Cobalt Square End Mill - YG-1 13301

MFR# 13301Series E2053

$32.56List $41.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialCobalt
CoatingBright/Uncoated

Description

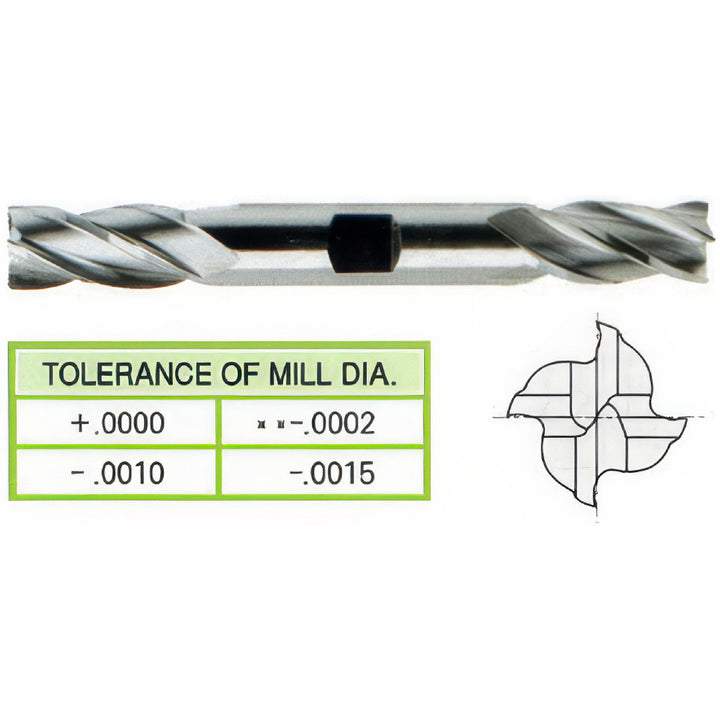

The YG-1 13301 is a 5/16 4-flute Cobalt (M42) square end mill. Suited for steel. 3/4 length of cut, 3-1/2 overall length. Series E2053.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeM42
Mill diameter in5/16
Mill diameter tolerance0.0000 to -0.0010 in
Number of flutes4
Overall length in3-1/2
Primary workpiece materialSteel
Secondary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
