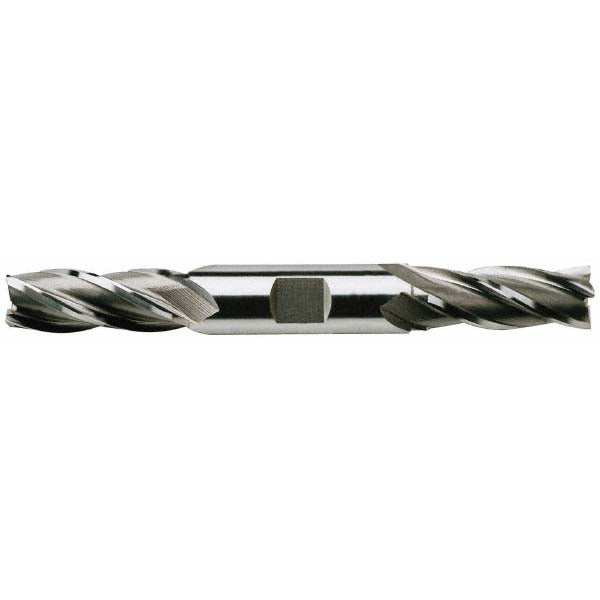

1/2in" 4-Flute Cobalt Square End Mill - YG-1 13321

YG-1

1/2in" 4-Flute Cobalt Square End Mill - YG-1 13321

MFR# 13321Series E2053

$47.48List $60.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialCobalt
CoatingBright/Uncoated

Description

The YG-1 13321 is a 1/2in 4-flute Cobalt (M42) square end mill. Suited for steel. 1in length of cut, 4-1/8in overall length. Series E2053.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1in
Length typeRegular
Material gradeM42
Mill diameter in1/2in
Mill diameter tolerance0.0000 to -0.0010 in
Number of flutes4
Overall length in4-1/8in
Primary workpiece materialSteel
Secondary workpiece materialNon-Ferrous Metal
Shank diameter in1/2in
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
