YG-1

3/32" 2-Flute Solid Carbide Square End Mill - YG-1 21556

MFR# 21556Series E5254

$33.96List $43.55 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/32

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

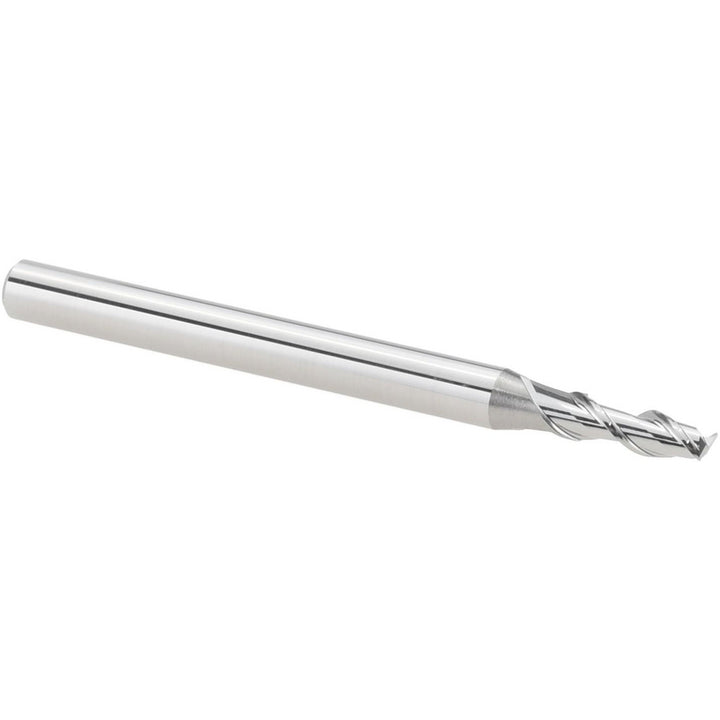

The YG-1 21556 is a 3/32 2-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 1/4 length of cut, 1-1/2 overall length. Series E5254.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle42

Length of cut in1/4

Length typeRegular

Material gradeMicrograin

Mill diameter in3/32

Mill diameter tolerance0.0000 to -0.0012 in

Number of flutes2

Overall length in1-1/2

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in1/8

Shank diameter tolerance+0.0000 - -0.0003 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
