YG-1

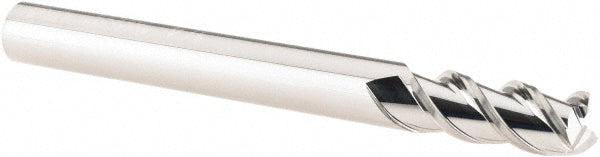

1/4in" 3-Flute Solid Carbide Square End Mill - YG-1 28573
MFR# 28573Series E5981
$34.82List $44.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The YG-1 28573 is a 1/4in 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 5/8in length of cut, 2-1/2in overall length. Series E5981.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in5/8in
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4in
Mill diameter tolerance0.0000 to -0.0005 in
Number of flutes3
Overall length in2-1/2in
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/4in
Shank diameter tolerance+0.0000 to -0.0003 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
