YG-1

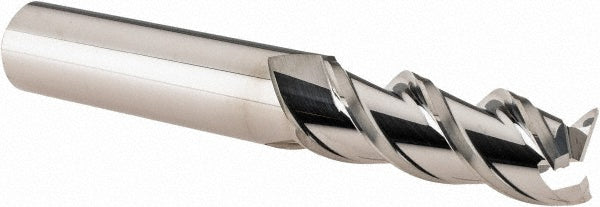

3/8in" 3-Flute Solid Carbide Square End Mill - YG-1 28584
MFR# 28584Series E5981
$45.23List $58.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The YG-1 28584 is a 3/8in 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1in length of cut, 2-1/2in overall length. Series E5981.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1in
Length typeRegular
Material gradeMicrograin
Mill diameter in3/8in
Mill diameter tolerance0.0000 to -0.0005 in
Number of flutes3
Overall length in2-1/2in
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8in
Shank diameter tolerance+0.0000 to -0.0003 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
