YG-1

1/2in" 3-Flute Solid Carbide Square End Mill, TiCN - YG-1 28593TC

MFR# 28593TCSeries E5981

$98.08List $125.79 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2in

Flutes3

MaterialSolid Carbide

CoatingTiCN

Description

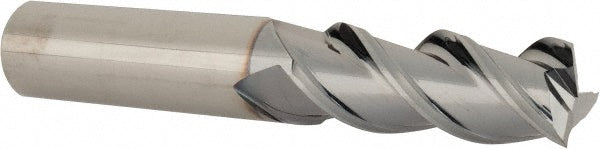

The YG-1 28593TC is a 1/2in 3-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. Suited for non-ferrous metal. 1-1/4in length of cut, 3in overall length. Series E5981.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-1/4in

Length of cut range1.2500 - 1.5000

Length typeRegular

Material gradeMicrograin

Mill diameter in1/2in

Mill diameter tolerance0.0000 to -0.0005 in

Number of flutes3

Overall length in3in

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/2in

Shank diameter tolerance+0.0000 to -0.0003 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
