YG-1

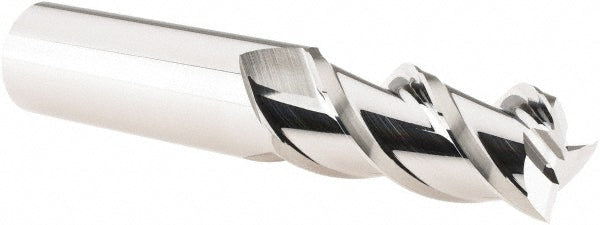

3/4in" 3-Flute Solid Carbide Square End Mill - YG-1 28598
MFR# 28598Series E5981
$210.68List $270.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The YG-1 28598 is a 3/4in 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1-5/8in length of cut, 4in overall length. Series E5981.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-5/8in
Length typeRegular
Material gradeMicrograin
Mill diameter in3/4in
Mill diameter tolerance0.0000 to -0.0005 in
Number of flutes3
Overall length in4in
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/4in
Shank diameter tolerance+0.0000 to -0.0003 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
