YG-1

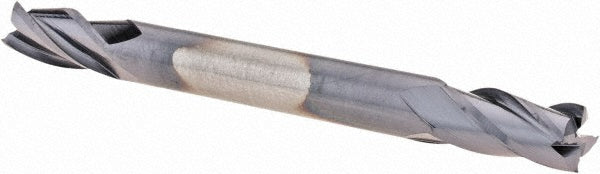

3/16in" 4-Flute Solid Carbide Square End Mill, TiAlN - YG-1 33565TF
MFR# 33565TFSeries E5023
$34.89List $44.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16in
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The YG-1 33565TF is a 3/16in 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel. 3/8in length of cut, 2in overall length. Series E5023.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8in
Length typeStub
Material gradeMicrograin
Mill diameter in3/16in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in2in
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal
Shank diameter in3/16in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
