YG-1

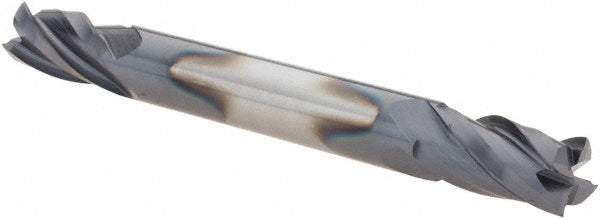

1/4in" 4-Flute Solid Carbide Square End Mill, TiAlN - YG-1 33573TF
MFR# 33573TFSeries E5023
$47.46List $60.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4in
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The YG-1 33573TF is a 1/4in 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel. 1/2in length of cut, 2-1/2in overall length. Series E5023.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2in
Length typeStub
Material gradeMicrograin
Mill diameter in1/4in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in2-1/2in
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal
Shank diameter in1/4in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
