YG-1

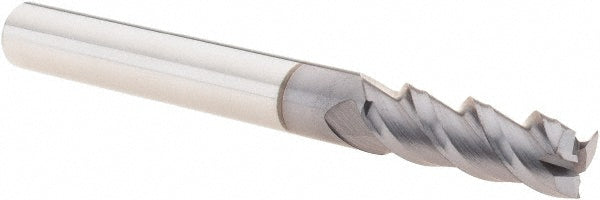

1/4in" 3-Flute Solid Carbide Square End Mill, TiCN - YG-1 34573TC
MFR# 34573TCSeries E5243
$47.82List $61.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4in
Flutes3
MaterialSolid Carbide
CoatingTiCN
Description
The YG-1 34573TC is a 1/4in 3-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. Suited for steel, stainless steel. 3/4in length of cut, 2-1/2in overall length. Series E5243.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in3/4in
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes3
Overall length in2-1/2in
Primary workpiece materialSteel; Stainless Steel
Secondary workpiece materialCast Iron; Super Alloys & Titanium
Shank diameter in1/4in
Shank diameter tolerance+0.0000 to -0.0005 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
