YG-1

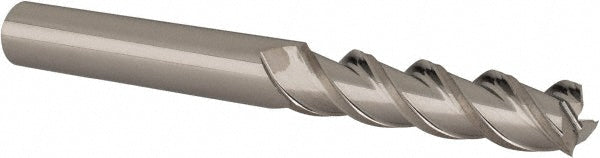

3/8in" 3-Flute Solid Carbide Square End Mill - YG-1 36584

MFR# 36584Series E5982

$67.17List $86.14 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8in

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The YG-1 36584 is a 3/8in 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1-1/2in length of cut, 3-1/2 overall length. Series E5982.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-1/2in

Length of cut range1.5000 - 2.0000

Length typeLong

Material gradeMicrograin

Mill diameter in3/8in

Mill diameter tolerance0.0000 to -0.0005 in

Number of flutes3

Overall length in3-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8in

Shank diameter tolerance+0.0000 to -0.0003 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
