YG-1

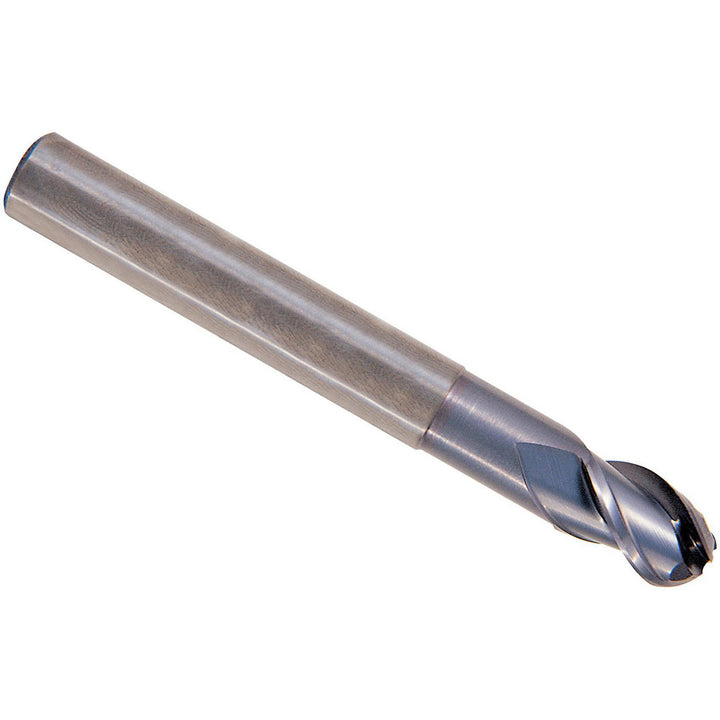

3/8" 3-Flute Solid Carbide Ball End Mill - YG-1 38584

MFR# YG-1-38584Cat# 38584Series E5975

$31.87List $40.75 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The YG-1 38584 is a 3/8 3-flute Solid Carbide (Micrograin) ball end mill. Suited for aluminum & non-ferrous. 5/8 length of cut, 3-1/8 overall length. Series E5975.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Helix styleHigh

Length of cut in5/8

Length typeExtended

Manufacturers catalog number38584

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance+0.0000/-0.0012 in

Neck diameter0.3510

Neck length in5/8

Nose radius0.1875

Number of flutes3

Overall length in3-1/8

Primary workpiece materialAluminum & Non-Ferrous

Reach length in1-1/4

Shank diameter in3/8

Shank diameter tolerance+0.0000/-0.0003 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
