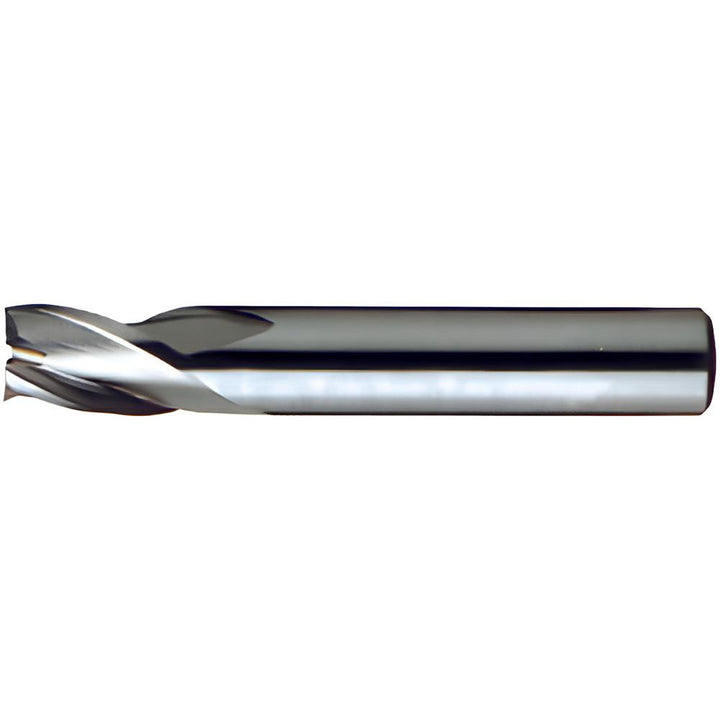

3/8" 3-Flute Solid Carbide Corner Radius End Mill, TiAlN-Futura - YG-1 56584TF

YG-1

3/8" 3-Flute Solid Carbide Corner Radius End Mill, TiAlN-Futura - YG-1 56584TF

MFR# 56584TFSeries E5074

$93.53List $119.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingTiAlN-Futura

Description

The YG-1 56584TF is a 3/8 3-flute Solid Carbide (MG) corner radius end mill with a TiAlN-Futura finish for longer tool life. Suited for steel, stainless steel. 1 length of cut, 2-1/2 overall length. Series E5074.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN-Futura
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleMedium
Length of cut in1
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeMG
Material removal typeRoughing
Mill diameter in3/8
Mill diameter tolerance0.0000 to 0.0012 in
Number of flutes3
Overall length in2-1/2
PitchCoarse
Primary workpiece materialSteel; Stainless Steel
Secondary workpiece materialCast Iron
Shank diameter in3/8
Shank diameter tolerance0.0000 to 0.0003 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
