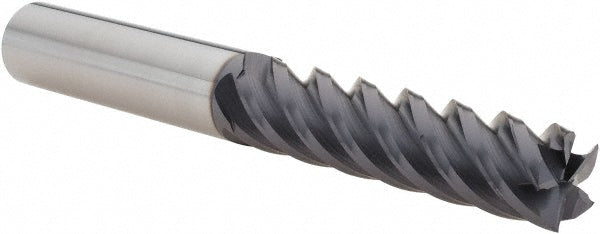

1/2in" 5-Flute Solid Carbide Square End Mill, TiAlN - YG-1 58593TF

YG-1

1/2in" 5-Flute Solid Carbide Square End Mill, TiAlN - YG-1 58593TF

MFR# 58593TFSeries E5068

$192.09List $246.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes5
MaterialSolid Carbide
CoatingTiAlN

Description

The YG-1 58593TF is a 1/2in 5-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel. 2in length of cut, 4in overall length. Series E5068.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in2in
Length of cut range2.0000+
Length typeLong
Material gradeMicrograin
Mill diameter in1/2in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes5
Overall length in4in
Primary workpiece materialSteel; Stainless Steel
Secondary workpiece materialCast Iron; Super Alloys & Titanium
Shank diameter in1/2in
Shank diameter tolerance+0.0000 to -0.0003 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
