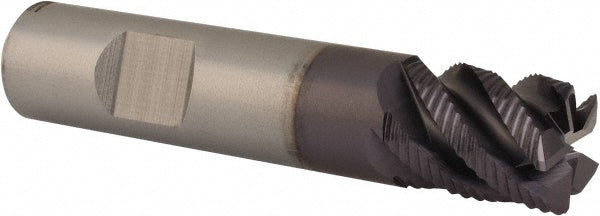

0.5000" 5-Flute Solid Carbide Roughing End Mill, TiAlN - YG-1 81593TF

YG-1

0.5000" 5-Flute Solid Carbide Roughing End Mill, TiAlN - YG-1 81593TF

MFR# 81593TFSeries E5056

$139.26List $178.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingTiAlN

Description

The YG-1 81593TF is a 0.5000 5-flute Solid Carbide (Micrograin) roughing end mill with a TiAlN finish for longer tool life. Series E5056.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.6250
Length typeStub
Material gradeMicrograin
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance0.0000 to -0.0030 in
Number of flutes5
Shank diameter in1/2
Shank diameter tolerance0.0000 to -0.0005 in
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
