YG-1

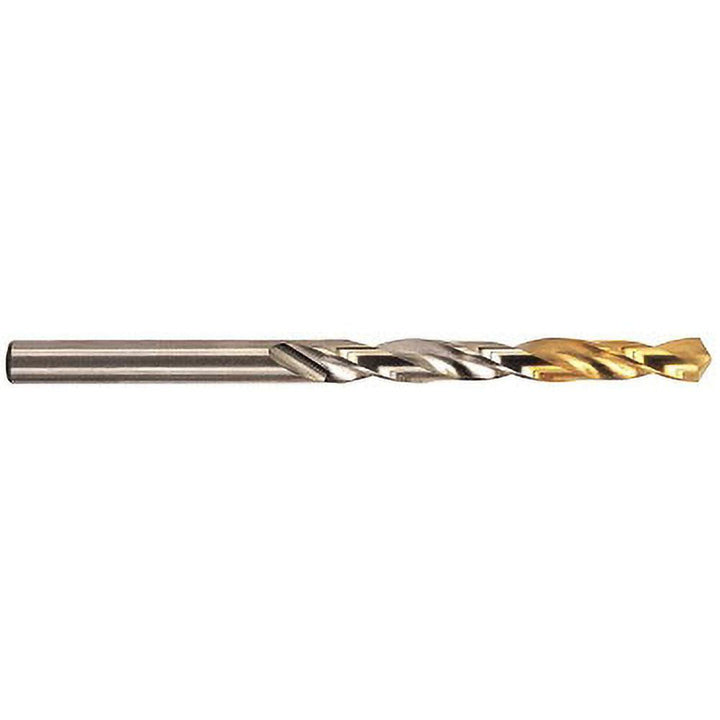

#3 HSS Drill Bit, TiN, 118° point - YG-1 D1GP138254
MFR# D1GP138254Series D1GP138
$3.25List $4.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The YG-1 D1GP138254 is a #3 HSS drill bit with a TiN finish, 118° point. Suited for steel. 2-1/2 flute length, 3-3/4 overall length. Series D1GP138.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size0.2130
Drill bit size range0.2000 - 0.2500
Drill bit size wire#3
Drill point angle degrees118
Flute by diameter ratio12xD
Flute length in2-1/2
Flute typeRegular Spiral
Maximum drilling depth in2-1/2
Number of flats0
Number of flutes2
Overall length in3-3/4
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter0.2130
Shank length in1-1/4
Shank typeStraight
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
