YG-1

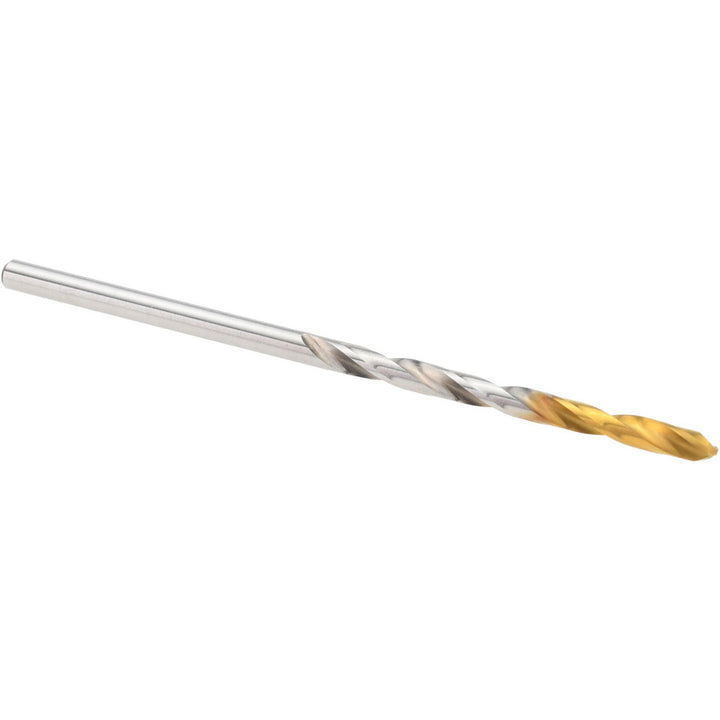

3/32" HSS Drill Bit, TiN, 135° point - YG-1 D2GP185006
MFR# D2GP185006Series D2GP185
$2.17List $2.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/32
Flutes2
CoatingTiN
Description
The YG-1 D2GP185006 is a 3/32" HSS drill bit with a TiN finish, 135° point. Suited for steel. 1-1/4 flute length, 2-1/4 overall length. Series D2GP185.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerance-0.0005 to +0.0000
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in3/32
Drill bit size range0.0500 - 0.1000
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in1-1/4
Flute typeRegular Spiral
Maximum drilling depth in1-1/4
Number of flats0
Number of flutes2
Overall length in2-1/4
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter in3/32
Shank length in1
Shank typeStraight
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
