YG-1

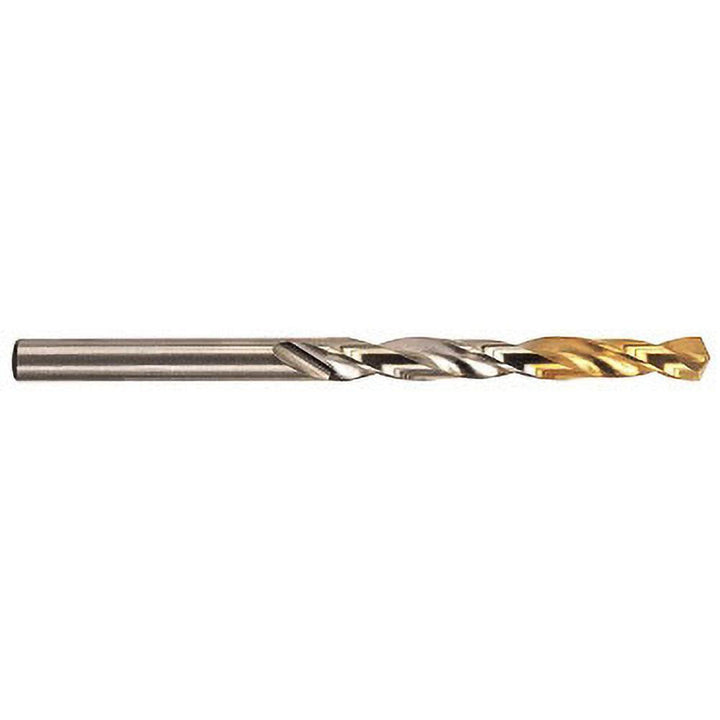

1/8" High Speed Steel Drill Bit, TiN, 135° point - YG-1 D2GP185008
MFR# D2GP185008Series D2GP185
$2.74List $3.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingTiN
Description
The YG-1 D2GP185008 is a 1/8" High Speed Steel drill bit with a TiN finish, 135° point. Suited for steel. 1-5/8 flute length, 2-3/4in overall length. Series D2GP185.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerance-0.0005 to +0.0000
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in1-5/8
Flute typeSpiral
Maximum drilling depth in1-5/8
Number of flats0
Number of flutes2
Overall length in2-3/4in
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter in1/8in
Shank length in1-1/8in
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
