YG-1

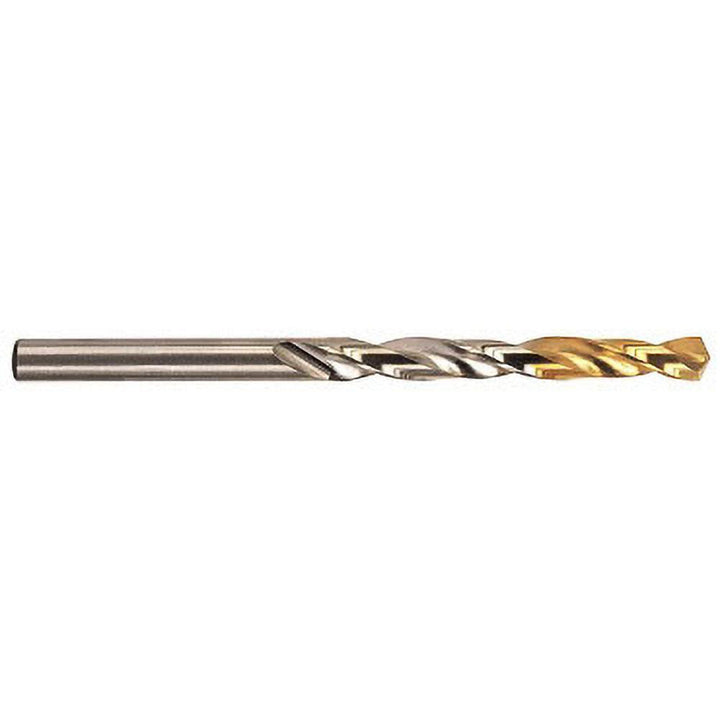

19/64" HSS Drill Bit, TiN, 135° point - YG-1 D2GP185019
MFR# D2GP185019Series D2GP185
$7.66List $9.82
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/64
Flutes2
CoatingTiN
Description
The YG-1 D2GP185019 is a 19/64" HSS drill bit with a TiN finish, 135° point. Suited for steel. 3-1/16 flute length, 4-3/8 overall length. Series D2GP185.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerance-0.0010 to +0.0000
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in19/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute by diameter ratio10xD
Flute length in3-1/16
Flute typeRegular Spiral
Maximum drilling depth in3-1/16
Number of flats0
Number of flutes2
Overall length in4-3/8
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter in19/64
Shank length in1-5/16
Shank typeStraight
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
