YG-1

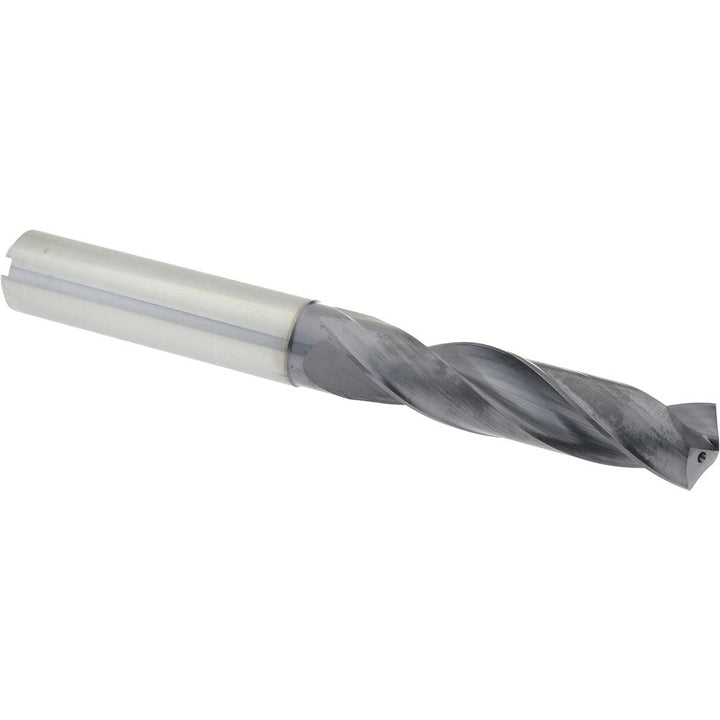

11.50mm Solid Carbide Drill Bit, TiAlN, 140° point - YG-1 DTX406115
MFR# DTX406115
$221.77List $284.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description
The YG-1 DTX406115 is a 11.50mm Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, non-ferrous metals, plastics, steel.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.025 to +0.007 mm
Drill bit size (mm)11.50
Drill bit size range (mm)11.00 to 13.50
Drill point angle140
Flute length (mm)55.00
Flute typeSpiral
Overall length (mm)102.00
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metals; Plastics; Steel
Shank diameter (mm)12.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
