YG-1

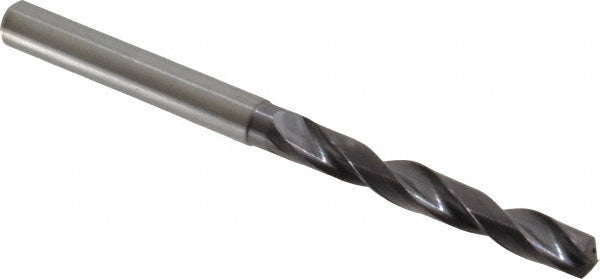

0.2246" Solid Carbide Drill Bit, 140° point - YG-1 DTX408057
MFR# DTX408057Series DH408
$116.23List $149.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The YG-1 DTX408057 is a 0.2246" Solid Carbide drill bit, 140° point. Suited for steel. Series DH408.
Specifications
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit diameter toleranceh6
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.2246
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Flute by diameter ratio8xD
Flute length1.7336
Flute typeRegular Spiral
Maximum drilling depth1.7336
Number of flats0
Number of flutes2
Overall length3.2308
Point typeSelf Centering
Primary workpiece materialSteel
Shank diameter0.2246
Shank length1.4972
Shank typeStraight
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningR-Thinned
