YG-1
0.3191" Solid Carbide Drill Bit, TiAlN, 140° point - YG-1 DTX408081
MFR# DTX408081Series DH408
$160.09List $205.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description

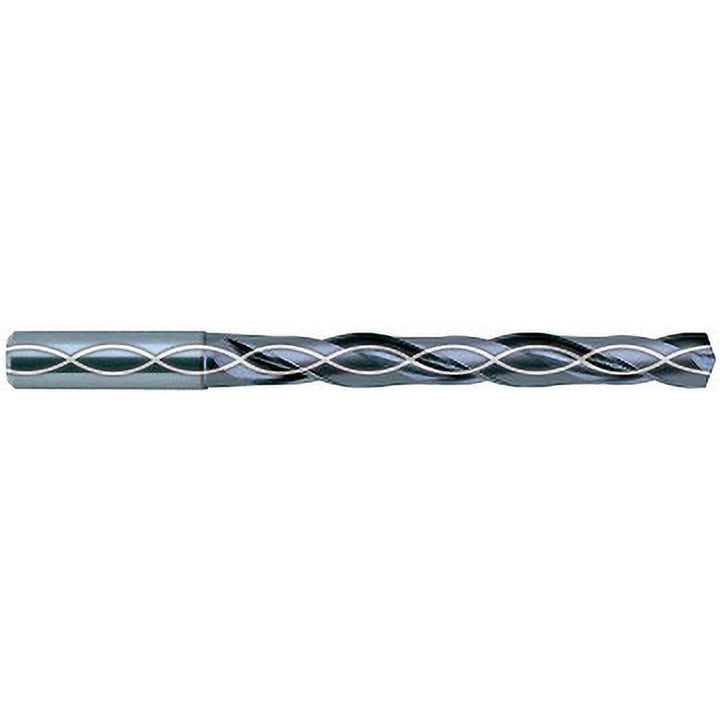

The YG-1 DTX408081 is a 0.3191" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series DH408.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit diameter toleranceh6
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.3191
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Flute by diameter ratio8xD
Flute length2.4034
Flute typeSpiral
Maximum drilling depth2.4034
Number of flats0
Number of flutes2
Overall length4.0582in
Point typeSelf Centering
Primary workpiece materialSteel
Shank diameter0.3191
Shank length1.6548in
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningR-Thinned
