YG-1

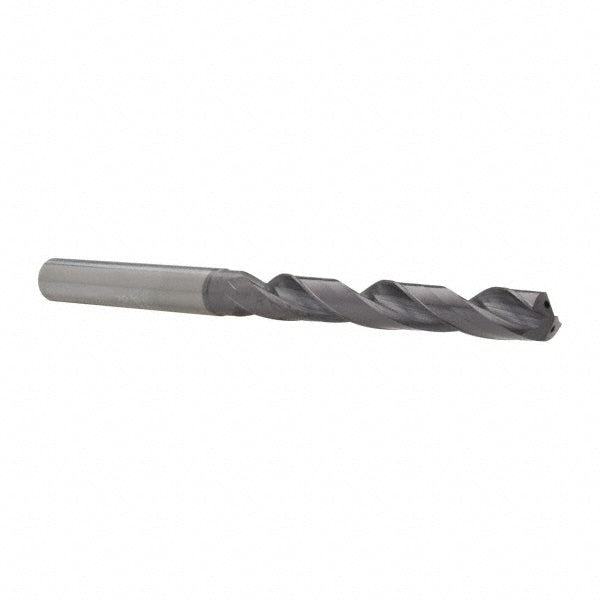

13/32" Solid Carbide Drill Bit, 140° point - YG-1 DTX418026
MFR# DTX418026Series DH418
$259.43List $332.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
Flutes2
Description
The YG-1 DTX418026 is a 13/32" Solid Carbide drill bit, 140° point. Suited for steel. 3-5/16 flute length, 5-7/8 overall length. Series DH418.
Specifications
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit diameter toleranceh6
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in13/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Flute by diameter ratio8xD
Flute length in3-5/16
Flute typeSpiral
Maximum drilling depth in3-5/16
Number of flats0
Number of flutes2
Overall length in5-7/8
Point typeSelf Centering
Primary workpiece materialSteel
Shank diameter in27/64
Shank length in2-9/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningR-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
