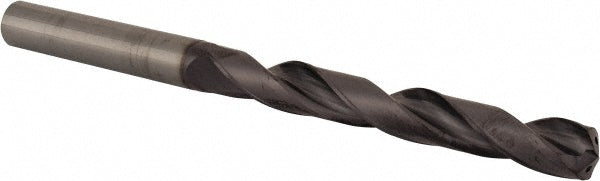

1/2" Solid Carbide Drill Bit, TiAlN, 140° point - YG-1 DTX418032

YG-1

1/2" Solid Carbide Drill Bit, TiAlN, 140° point - YG-1 DTX418032

MFR# DTX418032Series DH418

$337.41List $432.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/2
Flutes2
CoatingTiAlN

Description

The YG-1 DTX418032 is a 1/2" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. 4-3/32 flute length, 6-37/64in overall length. Series DH418.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit diameter toleranceh6
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Flute by diameter ratio8xD
Flute length in4-3/32
Flute typeSpiral
Maximum drilling depth in4-3/32
Number of flats0
Number of flutes2
Overall length in6-37/64in
Point typeSelf Centering
Primary workpiece materialSteel
Shank diameter in1/2in
Shank length in2-31/64in
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningR-Thinned
