YG-1

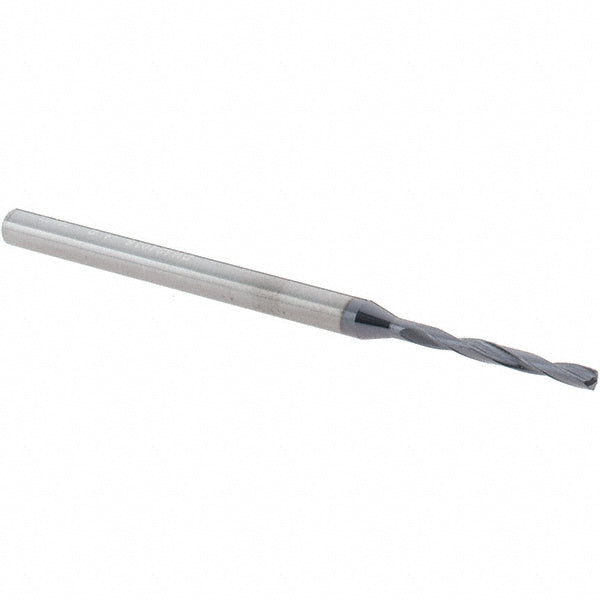

0.0630" Solid Carbide Drill Bit, 140° point - YG-1 DTX424016
MFR# DTX424016Series DH424
$70.52List $90.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The YG-1 DTX424016 is a 0.0630" Solid Carbide drill bit, 140° point. Suited for steel. Series DH424.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter toleranceh6
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.0630
Drill bit size range0.0500 - 0.1000
Drill point angle degrees140
Flute by diameter ratio10xD
Flute length0.6304
Flute typeSpiral
Maximum drilling depth0.6304
Number of flats0
Number of flutes2
Overall length2.1670in
Point typeSelf Centering
Primary workpiece materialSteel
Shank diameter0.0630
Shank length1.5366in
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web thinningR-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
