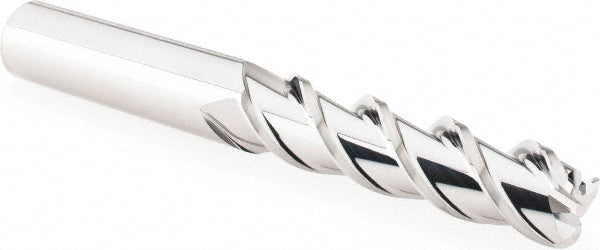

1/2in" 3-Flute Solid Carbide Corner Radius End Mill - YG-1 EA30321

YG-1

1/2in" 3-Flute Solid Carbide Corner Radius End Mill - YG-1 EA30321

MFR# EA30321Series E5982

$105.27List $135.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes3
MaterialSolid Carbide

Description

The YG-1 EA30321 is a 1/2in 3-flute Solid Carbide (MG) corner radius end mill. Suited for non-ferrous metal. 2in length of cut, 4in overall length. Series E5982.

Specifications

CentercuttingYes
ChipbreakerNo
Coolant throughNo
Corner radius0.1200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in2in
Length typeLong
Material applicationNon-Ferrous Metal
Material gradeMG
Material removal typeFinishing
Mill diameter in1/2in
Mill diameter tolerance0.0000/0.0005 in
Number of flutes3
Overall length in4in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2in
Shank diameter tolerance0.0000/0.0003 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
